Captive Portal Allowlist

Omada pre-authentication access for PaySpot

Add only the domains customers need before authentication. Fast Transfer and GTBank USSD stay on PaySpot, so Paystack browser domains are needed only when the tenant offers Fast Pay Card or normal Paystack checkout.

When this is needed

  • Users must open PaySpot before they are authenticated on the hotspot.
  • The captive page has a Buy Voucher button.
  • Customers use PaySpot Fast Transfer, Card, or the normal Paystack checkout.
  • Omada is using External Web Portal for RADIUS/account access.

Where to configure it

  • Omada v5.9 to v6: Site Settings -> Authentication -> Portal -> Access Control.
  • Omada v6.2+: Site View -> Network Config -> Authentication -> Portal -> Access Control.
  • Enable Pre-Authentication Access, click Add, choose URL or IP Range, then Save and Apply.

PaySpot imported portal entries

  • Imported PaySpot HTML runs from Omada, so the HTML file itself does not need an allowlist entry.
  • Add payspot.abdxl.cloud so the Buy Voucher link can open before authentication.
  • Add the tenant custom PaySpot domain too, if one is used.
  • Add a separate portal host only when the page is hosted outside Omada instead of imported.
  • Use URL entries for hostnames; use IP Range only for local controller or gateway addresses.

Official Omada Screenshots

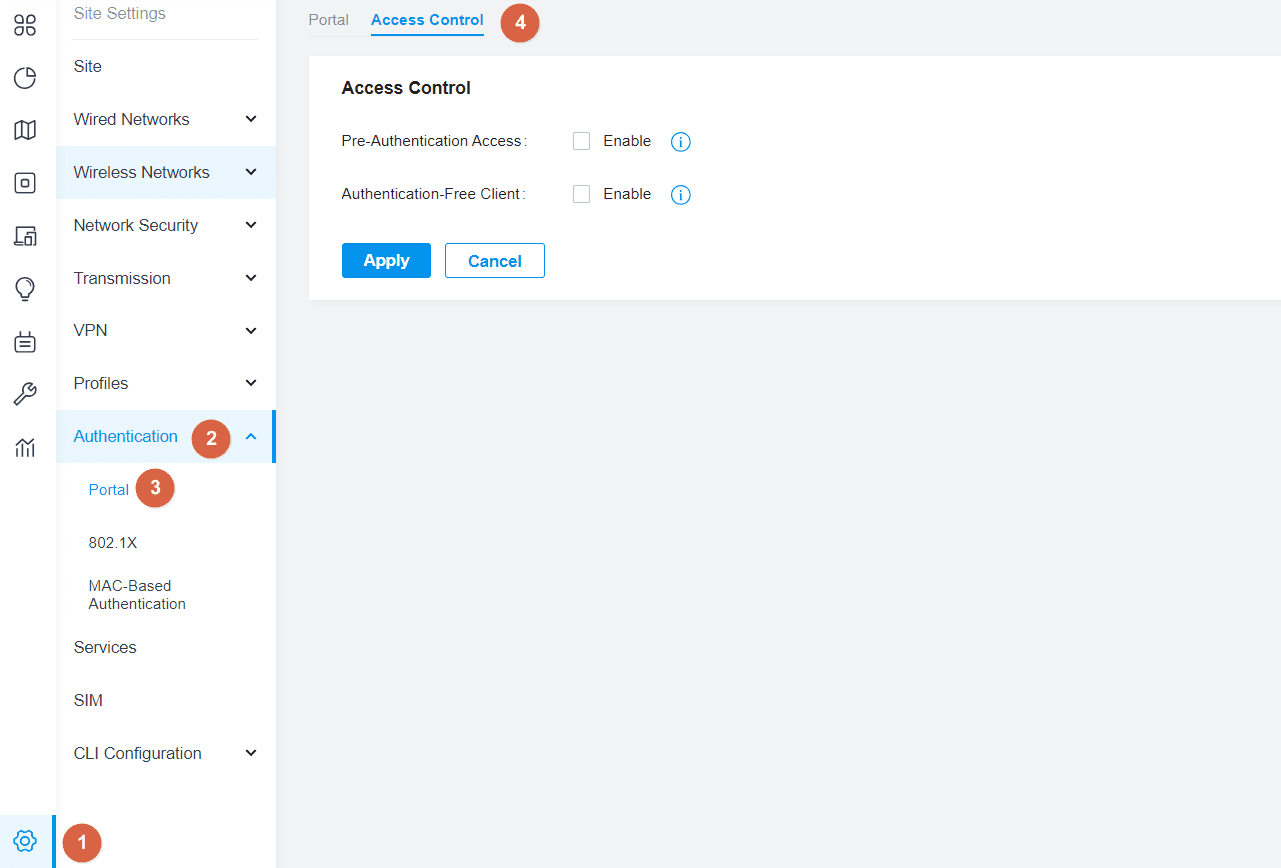

Omada Access Control tab showing Pre-Authentication Access and Authentication-Free Client options
Open the Portal Access Control tab. Source image
Omada Access Control page with Pre-Authentication Access enabled and Add action highlighted
Enable Pre-Authentication Access and click Add. Source image
Omada Add Pre-Authentication Access Entry modal showing IP Range and URL options
Choose URL or IP Range for each pre-authentication entry. Source image
Omada Add Pre-Authentication Access Entry modal with example URL and Save button
Add only required hosts, then save and apply. Source image
Omada v6.2 Pre-Authentication Access entry modal
Newer Omada Network versions show the same URL/IP Range choice in the updated UI. Source image

Minimum entries

  • payspot.abdxl.cloud
  • Tenant custom domain, if used, for example wifi.example.com
  • Custom portal host, if different from PaySpot

Fast Transfer and checkout entries

  • Fast Transfer and GTBank USSD need only the PaySpot hostname; Paystack is contacted by the server.
  • Fast Pay Card opens Paystack's hosted card page: add checkout.paystack.com, js.paystack.co, api.paystack.co, standard.paystack.co, and challenges.cloudflare.com.
  • For Card only: add *.paystack.com and *.paystack.co if the controller supports domain-suffix entries.

External RADIUS browserauth note

In External Web Portal mode, PaySpot sends the browser back to Omada's/portal/radius/browserauthendpoint. If the client browser cannot submit to the controller, add the controller IP or hostname shown in Omada's target parameter.
